| Database::rsOutput2File |
| Description |
Output
the contents of the recordset which is referenced by "Source Handle"
to a textfile, spreadsheet, Microsoft Excel, Microsoft Word, XML or JSON
file.
The "Internal Translation
Table" is used to perform character-translation on the source-data
before it is output to the file. The combobox contains a list of tables
which are available in the INTERNAL-database. The structure of a "Translation
Table" has to be as follows;
| Column-name |
Column-type |
Description |
| OrderId |
Integer |
Order in
which the translation will take place |
| Enabled |
yes/no |
enable
or disable record |
| inString |
Memo |
The string
in the source-data that must be translated to outString |
| outString |
Memo |
The replacement-string |
| Description |
Text |
Optional
description-field |
Use [Chr(nnn)]
to specify specific ascii-codes and [CrLf] for carriage-return-linefeed. |
 |

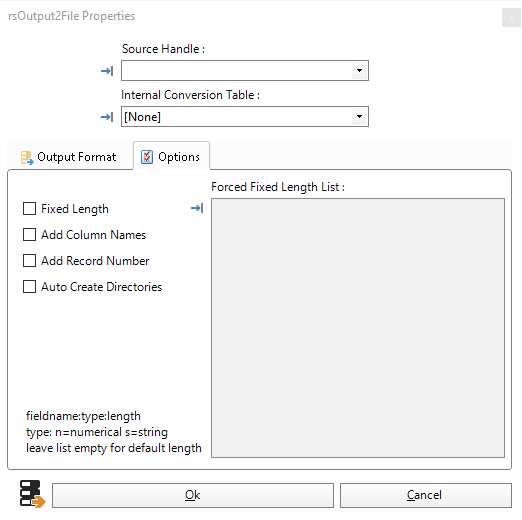

| Options |
|
Source
Handle |
Name
of the handle which references the desired source-recordset. |
|
Internal Conversion Table |
The
name of the table that is to be used to apply character-translation during
the output of the data from the recordset to the file. |
|
Fixed
Length |
When
checked, all fields will be exported with a fixed length. If the field is
not configured in the "Forced Fixed-length list" then the original
field-length of the source-field will be used. The space-character is used
as padding. |
|
Add
Column Names |
When
checked, the first line will contain the column-names of the recordset. |
|
Add
Record Number |
When
checked, the first column will contain the record-number. |
|
Auto
Create Directories |
When
checked, missing directories will automatically be created. |
|
Forced
Fixed-length List |
In
this list field (column)names can be configured together with the type and
the length of the output.
Syntax:
fieldname:type:length
fielname:name of the field
type: s=string-value, n=numerical value (string-value will be "left-aligned"
and numerical-value will be "right-aligned")
length: the fixed-length of the output-data (padded with spaces). |
| rsOutput2File
- Textfile |
 |
| Options |
|
Output
Textfile |
Name
of the output textfile. |
|
Create
New File |
When
checked, a new outputfile will be created, overwriting the old file. |
|
Column
Delimiter |
The
character that will be used as a delimiter when writing the data to the
file.
example: field1,field2,field3 (delimiter is ,) |
|
Header |
String
to write as a header to the file. |
|
End
of Record |
String
to use at the end of each record (example: <CrLf>). |
|
Footer |
String
to write as a footer to the file. |
|
End
of File |
String
to write at the end of the file. |
|
Encoding |
The
encoding of the outputfile. |
| rsOutput2File
- Spreadsheet |
 |
| Options |
|
Output
file |
Name
of the output file. |
|
Worksheet |
The
name of the worksheet. |

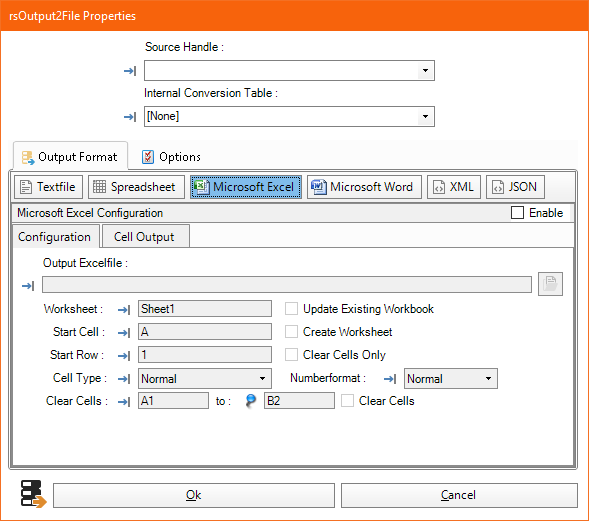

| rsOutput2File
- Microsoft Excel |
 |
| Options |
|
Output
Excelfile |
Name
of the output excel file. |
|
Worksheet |
The named
of the desired worksheet. |
|
Update
Existing Workbook |
When
checked, will update the existing workbook (not create a new excel file). |
|
Create
Worksheet |
When
checked, will create the specified worksheet in the selected workbook. |
|
Clear
Cells Only |
When
checked, will only clear the selected cell-range. |
|
Start
Cell / Start Row |
Cell-range
which will be updated with the data referenced by [handle]. |
|
Cell
Type |
Sets
the cell-type of the cells that will be updated.
Valid options:
Normal |
normal
(unchanged) |
Hyperlink |
data will be displayed
as a hyperlink (web or email)
note: "http://" and/or "mailto:" must be included
in the data |
AutoDetect |
the plugin will
autodetect if the data is "normal" or a hyperlink
note: "http://"
and/or "mailto:" must be included in the data
|
|
|
Numberformat |
Normal |
save value
to cell "as-is", without changing the numberformat |
Detect |
adjust the numberformat
of the cell based on the detected datatype of the value |
Recordset |
adjust the numberformat
of the cell based on the datatype of the recordset column
|
Worksheet |
adjust the numberformat
of the cell based on the numberformat of the worksheet cell (can
only be used in combination with "Update Existing Workbook")
|
|
|
Clear
Cells |
Cell-range
which will be cleared. |

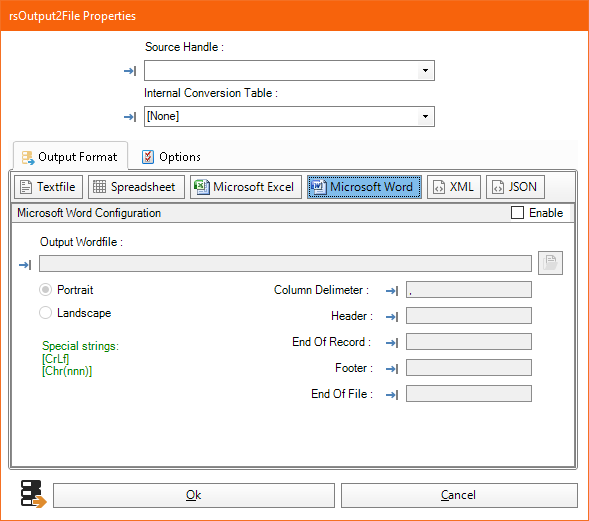

| rsOutput2File
- Microsoft Word |
 |
| Options |
|
Output
Wordfile |
Name
of the output word file. |
|
Portrait
/ Landscape |
Make
document in portrait or landscape. |
|
Column
Delimiter |
The
character that will be used as a delimiter when writing the data to the
file.
example: field1,field2,field3 (delimiter is ,) |
|
Header |
String
to write as a header to the file. |
|
End
of Record |
String
to use at the end of each record (example: <CrLf>). |
|
Footer |
String
to write as a footer to the file. |
|
End
of File |
String
to write at the end of the file. |

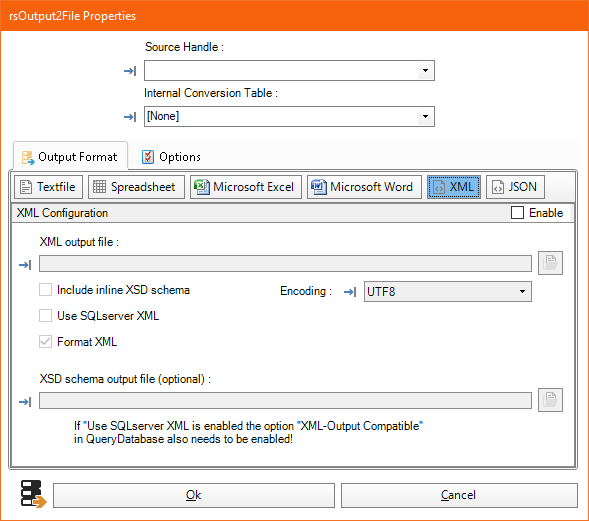

| rsOutput2File
- XML |
 |
| Options |
|
XML
output file |
Name
of the XML output file. |
|
Include
inline XSD schema... |
If
enabled, the XSD schema will be included in the XML file. |
|
Use
SQLserver XML |
If
enabled, the built-in XML exporter of the SQLserver driver will be used. |
|
Format
XML |
If
enabled, will format the XML into a visually "pleasing" format. |
|
Encoding |
The
encoding used for the XML file. |
|
XSD
schema output file |
Optional
filename for the XSD schema. |

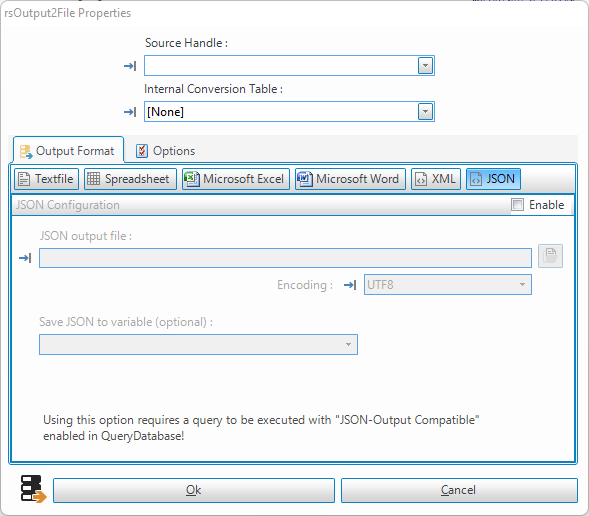

| rsOutput2File
- JSON |
 |
| Options |
|
JSON
output file |
Name
of the JSON output file. |
|
Encoding |
The
encoding used for the XML file. |
|
Save
JSON to variable |
Optional.
Saves the JSON string to the configured variable. |
